Working principle

Low grade heat source water exchanges heat with liquid refrigerant through an evaporator

After absorbing heat, the refrigerant evaporates and enters the suction port of the compressor

After two-stage compression, the refrigerant gas enters the condenser in a high-temperature and high-pressure state

The condenser releases heat to convert desalinated water into steam

The condensed liquid refrigerant enters the evaporator through throttling to complete the cycle

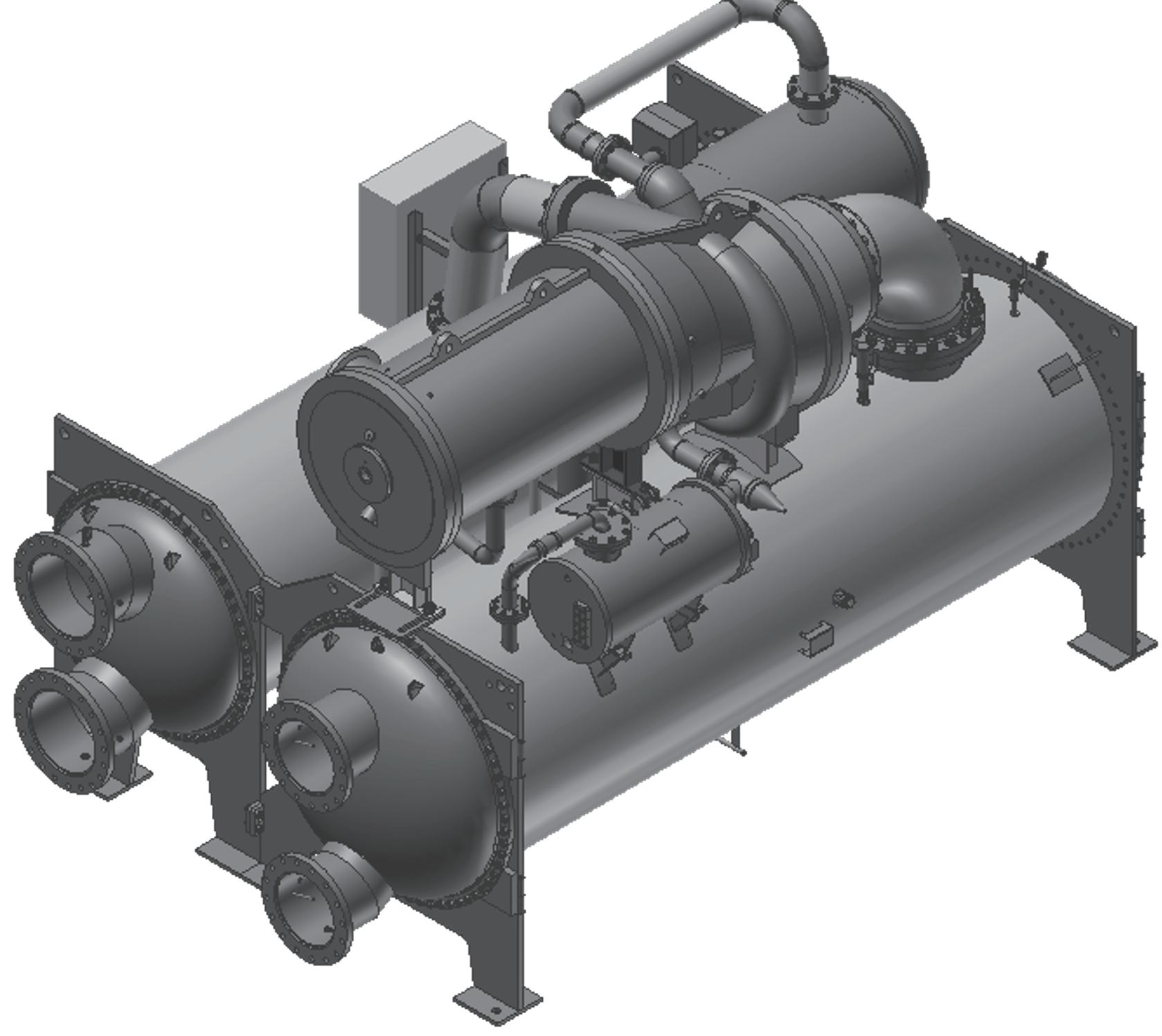

Adopting a two-stage centrifugal compressor with high gas production capacity

Design capability: 7MW

Rated gas production rate: 9 t/h

Steam pressure: 0.1~0.15MPa

Heat source temperature: below 85 ° C
